【DIY】8×8点阵LED

Arduino项目,个人项目

|

2024-7-13 17:25

|

99

499 字

|

29 分钟

本文最后更新于338 天前，其中的信息可能已经过时，如有错误请发送邮件到273925452@qq.com

这是大一时候做的小玩具，可以显示字符文字，可以滚动显示😀

演示视频：

预备：

一.进制转换

取模数组都为十六进制数0x ~~。
在进行进度转换时不能带进0x
十六进制转换为二进制时，位于首部的所有0不显示，而尾部要显示如：0x42—（0）1000010, 0x3e—（00）111110

二.流程

先确定哪一行亮。（亮的一行为0，不亮的为1）
在确定这一行那些亮。（亮的一列为1，不亮的为0）

例如让第二行亮，第二行中第2，7个亮

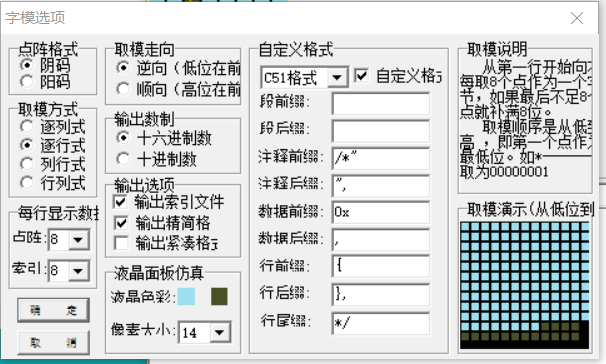

三.取模软件设置

软件：PCtoLCD2002

Aduino代码

int CLO = A3;   //定义时钟输出引脚。
int LA = A2;    //定义数据锁存引脚【一行数据传完，这个脚位由低变高，然后点阵显示数据】
int DA = A4 ;    //定义数据输出引脚。
int n=0;
int ys=100;
unsigned int H[8]={0x7f,0xbf,0xdf,0xef,0xf7,0xfb,0xfd,0xfe};     //行，地址。第几行准备点亮。

unsigned int zi[10][8]=
{

//每一行哪几个亮，{1-8行}在进行进度转换时不能带进0x
      //bilibili
      {0x42,0x24,0x7E,0x81,0xA5,0x81,0x99,0xFF},//1帧画面   //B站图标
      {0x42,0x24,0x7E,0x81,0xE7,0x81,0x99,0xFF},//第2帧画面
      {0x42,0x24,0x7E,0x81,0xA5,0x81,0x99,0xFF},//重复三次
      {0x42,0x24,0x7E,0x81,0xE7,0x81,0x99,0xFF},
      {0x42,0x24,0x7E,0x81,0xA5,0x81,0x99,0xFF},
      //大小爱心
      {0x42,0x24,0x7E,0x81,0xE7,0x81,0x99,0xFF},
      {0x00,0x24,0x5A,0x81,0x81,0x42,0x24,0x18},
      {0x24,0x7E,0x99,0x81,0x81,0x42,0x24,0x18},
      {0x00,0x24,0x5A,0x81,0x81,0x42,0x24,0x18},
      {0x24,0x7E,0x99,0x81,0x81,0x42,0x24,0x18},


};
void setup()
{
      Serial.begin(9600);
      pinMode(CLO,OUTPUT);    //让脚位为数字输出模式。
      pinMode(LA,OUTPUT);
      pinMode(DA,OUTPUT);

}



void loop()
{

    for(int i=0;i<ys;i++)
    {
    show( H,zi);        //调用函数。
    }

    if(n<9)     //n<组数-1
    {
    n++;
    }
    else
    {
      n=0;
    }
}

//H-X,zi-y
void show(unsigned int x[8] , unsigned int y[10][8])   //声明无返回值的函数 show。数据类型为，无符号整数。  为引脚输出的数据，【8】是规定这个数据输出字符的长度。
{
  for(int i=0;i<8;i++)           //for循环。声明整数 i。
  {
      digitalWrite(LA,0);        //数据所存引脚置为0，开始等待数据输入。
      shiftOut(DA,CLO,LSBFIRST,x[i]);     //发送行数据。(哪一行准备亮)shiftOut(数据输出引脚，时钟引脚，LSBfirst(从右到左)或MSBFIRST（从左到右），数组[第几个])
      shiftOut(DA,CLO,LSBFIRST,y[n][i]);     //发送列数据。shiftOut(数据输出引脚，时钟引脚，LSBfirst(从右到左)或MSBFIRST（从左到右），数组[第几个])
      digitalWrite(LA,1);       //数据所存引脚置为1，开始显示。
  }
}

图案代码

      //bilibili
      {0x42,0x24,0x7E,0x81,0xA5,0x81,0x99,0xFF},//1帧画面   //B站图标
      {0x42,0x24,0x7E,0x81,0xE7,0x81,0x99,0xFF},//第2帧画面
      {0x42,0x24,0x7E,0x81,0xA5,0x81,0x99,0xFF},//重复三次
      {0x42,0x24,0x7E,0x81,0xE7,0x81,0x99,0xFF},
      {0x42,0x24,0x7E,0x81,0xA5,0x81,0x99,0xFF},

       //大小爱心
      {0x42,0x24,0x7E,0x81,0xE7,0x81,0x99,0xFF},
      {0x00,0x24,0x5A,0x81,0x81,0x42,0x24,0x18},
      {0x24,0x7E,0x99,0x81,0x81,0x42,0x24,0x18},
      {0x00,0x24,0x5A,0x81,0x81,0x42,0x24,0x18},
      {0x24,0x7E,0x99,0x81,0x81,0x42,0x24,0x18},

       //坦克
      {0x7E,0x00,0x00,0x00,0x00,0x20,0x70,0x50},
      {0x7E,0x00,0x00,0x20,0x00,0x20,0x70,0x50},
      {0x7E,0x00,0x20,0x00,0x00,0x20,0x70,0x50},
      {0x7E,0x20,0x00,0x00,0x00,0x20,0x70,0x50},
      {0x5E,0x00,0x00,0x00,0x00,0x20,0x70,0x50},
      {0x5E,0x00,0x00,0x00,0x00,0x40,0xE0,0xA0},
      {0x5E,0x00,0x00,0x40,0x00,0x40,0xE0,0xA0},
      {0x5E,0x00,0x40,0x00,0x00,0x40,0xE0,0xA0},
      {0x5E,0x40,0x00,0x00,0x00,0x40,0xE0,0xA0},
      {0x1E,0x00,0x00,0x00,0x00,0x40,0xE0,0xA0},
      {0x1E,0x00,0x00,0x10,0x00,0x10,0x38,0x28},
      {0x1E,0x00,0x10,0x08,0x00,0x08,0x1C,0x14},
      {0x1E,0x10,0x08,0x04,0x00,0x04,0x0E,0x0A},
      {0x0E,0x08,0x04,0x02,0x00,0x02,0x07,0x05},
      {0x06,0x04,0x02,0x00,0x00,0x02,0x07,0x05},
      {0x02,0x02,0x00,0x00,0x00,0x02,0x07,0x05},
      {0x00,0x00,0x00,0x00,0x00,0x02,0x07,0x05},
      {0x00,0x00,0x00,0x00,0x00,0x04,0x0E,0x0A},
      {0x00,0x00,0x00,0x00,0x00,0x08,0x1C,0x14},
      {0x00,0x00,0x00,0x00,0x00,0x10,0x38,0x28},
      {0x00,0x00,0x00,0x00,0x10,0x38,0x28,0x00},
      {0x00,0x00,0x00,0x10,0x38,0x28,0x00,0x00},
      {0x00,0x00,0x10,0x38,0x28,0x00,0x00,0x00},

       //旋转十字
      {0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00},
      {0x00,0x00,0x10,0x1C,0x38,0x08,0x00,0x00},
      {0x00,0x10,0x10,0x1E,0x78,0x08,0x08,0x00},
      {0x10,0x10,0x10,0x1F,0xF8,0x08,0x08,0x08},
      {0x20,0x20,0x27,0x18,0x18,0xE4,0x04,0x04},
      {0x40,0x43,0x24,0x18,0x18,0x24,0xC2,0x02},
      {0x81,0x42,0x24,0x18,0x18,0x24,0x42,0x81},
      {0x02,0x84,0x48,0x38,0x1C,0x12,0x21,0x40},
      {0x04,0x08,0x88,0x78,0x1E,0x11,0x10,0x20},
      {0x08,0x08,0x08,0xF8,0x1F,0x10,0x10,0x10},

      //倒计时9~0
 {0x00,0x3C,0x24,0x24,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x24,0x24,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x20,0x20,0x10,0x08,0x08,0x00},
{0x00,0x3C,0x20,0x20,0x10,0x08,0x08,0x00},
{0x00,0x3C,0x20,0x20,0x10,0x08,0x08,0x00},
{0x00,0x3C,0x20,0x20,0x10,0x08,0x08,0x00},
{0x00,0x3C,0x20,0x20,0x10,0x08,0x08,0x00},
{0x00,0x3C,0x20,0x20,0x10,0x08,0x08,0x00},
{0x00,0x3C,0x04,0x04,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x24,0x24,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x04,0x04,0x3C,0x20,0x20,0x3C},
{0x00,0x10,0x18,0x14,0x12,0x7E,0x10,0x10},
{0x00,0x10,0x18,0x14,0x12,0x7E,0x10,0x10},
{0x00,0x10,0x18,0x14,0x12,0x7E,0x10,0x10},
{0x00,0x10,0x18,0x14,0x12,0x7E,0x10,0x10},
{0x00,0x10,0x18,0x14,0x12,0x7E,0x10,0x10},
{0x00,0x10,0x18,0x14,0x12,0x7E,0x10,0x10},
{0x00,0x3C,0x20,0x20,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x20,0x20,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x04,0x04,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x04,0x04,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x04,0x04,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x04,0x04,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x04,0x04,0x3C},
{0x00,0x3C,0x20,0x20,0x3C,0x04,0x04,0x3C},
{0x10,0x18,0x14,0x10,0x10,0x10,0x7C,0x00},
{0x10,0x18,0x14,0x10,0x10,0x10,0x7C,0x00},
{0x10,0x18,0x14,0x10,0x10,0x10,0x7C,0x00},
{0x10,0x18,0x14,0x10,0x10,0x10,0x7C,0x00},
{0x10,0x18,0x14,0x10,0x10,0x10,0x7C,0x00},
{0x10,0x18,0x14,0x10,0x10,0x10,0x7C,0x00},
{0x00,0x3C,0x24,0x24,0x24,0x24,0x3C,0x00},
{0x00,0x3C,0x24,0x24,0x24,0x24,0x3C,0x00},
{0x00,0x3C,0x24,0x24,0x24,0x24,0x3C,0x00},
{0x00,0x3C,0x24,0x24,0x24,0x24,0x3C,0x00},
{0x00,0x3C,0x24,0x24,0x24,0x24,0x3C,0x00},
{0x00,0x3C,0x24,0x24,0x24,0x24,0x3C,0x00},


滚动G0
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00},
{0x00,0xC0,0x40,0x40,0x40,0x40,0xC0,0x00},
{0x00,0xE0,0x20,0xA0,0xA0,0x20,0xE0,0x00},
{0x00,0xF0,0x10,0xD0,0x50,0x10,0xF0,0x00},
{0x00,0xF8,0x08,0xE8,0xA8,0x88,0xF8,0x00},
{0x00,0x7C,0x04,0x74,0x54,0x44,0x7C,0x00},
{0x00,0x3E,0x02,0x3A,0x2A,0x22,0x3E,0x00},
{0x00,0x1F,0x01,0x1D,0x15,0x11,0x1F,0x00},
{0x00,0x0F,0x00,0x0E,0x0A,0x08,0x0F,0x00},
{0x00,0x07,0x00,0x07,0x05,0x04,0x07,0x00},
{0x00,0x03,0x00,0x03,0x02,0x02,0x03,0x00},
{0x00,0x01,0x00,0x01,0x01,0x01,0x01,0x00},

{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00},
{0x00,0x00,0xC0,0x40,0x40,0xC0,0x00,0x00},
{0x00,0x00,0xE0,0x20,0x20,0xE0,0x00,0x00},
{0x00,0x00,0xF0,0x90,0x90,0xF0,0x00,0x00},
{0x00,0x00,0x78,0x48,0x48,0x78,0x00,0x00},
{0x00,0x00,0x3C,0x24,0x24,0x3C,0x00,0x00},
{0x00,0x00,0x1E,0x12,0x12,0x1E,0x00,0x00},
{0x00,0x00,0x0F,0x09,0x09,0x0F,0x00,0x00},
{0x00,0x00,0x07,0x04,0x04,0x07,0x00,0x00},
{0x00,0x00,0x03,0x02,0x02,0x03,0x00,0x00},
{0x00,0x00,0x01,0x01,0x01,0x01,0x00,0x00},


//你
{0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00},
{0x00,0x80,0xC0,0x80,0x80,0x80,0x80,0x80},
{0x80,0x40,0x60,0x40,0x40,0x40,0x40,0x40},
{0x40,0xA0,0xB0,0x20,0x20,0xA0,0x20,0x20},
{0xA0,0xD0,0x58,0x10,0x90,0x50,0x10,0x90},
{0x50,0xE8,0xAC,0x88,0xC8,0xA8,0x88,0xC8},
{0x28,0xF4,0x56,0x44,0xE4,0x54,0x44,0x64},
{0x28,0xF4,0x56,0x44,0xE4,0x54,0x44,0x64},
{0x14,0xFA,0xAB,0x22,0x72,0xAA,0x22,0x32},
{0x0A,0x7D,0x55,0x11,0x39,0x55,0x11,0x19},
{0x05,0x3E,0x2A,0x08,0x1C,0x2A,0x08,0x0C},
{0x02,0x1F,0x15,0x04,0x0E,0x15,0x04,0x06},
{0x01,0x0F,0x0A,0x02,0x07,0x0A,0x02,0x03},
{0x00,0x07,0x05,0x01,0x03,0x05,0x01,0x01},
{0x00,0x03,0x02,0x00,0x01,0x02,0x00,0x00},
{0x00,0x01,0x01,0x00,0x00,0x01,0x00,0x00},


//好
{0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x80},
{0x00,0x00,0xC0,0x80,0x80,0x80,0x80,0x40},
{0x80,0x80,0xE0,0x40,0x40,0x40,0xC0,0x20},
{0x40,0x40,0xF0,0xA0,0xA0,0xA0,0x60,0x90},
{0x20,0x20,0xF8,0x50,0x50,0x50,0x30,0x48},
{0x10,0x90,0x7C,0x28,0xA8,0x28,0x18,0xA4},
{0x08,0xC8,0x3E,0x94,0xD4,0x94,0x8C,0xD2},
{0x04,0xE4,0x9F,0x4A,0xEA,0x4A,0x46,0x69},
{0x02,0x72,0x4F,0x25,0x75,0x25,0x23,0x34},
{0x01,0x39,0x27,0x12,0x3A,0x12,0x11,0x1A},
{0x00,0x1C,0x13,0x09,0x1D,0x09,0x08,0x0D},
{0x00,0x0E,0x09,0x04,0x0E,0x04,0x04,0x06},
{0x00,0x07,0x04,0x02,0x07,0x02,0x02,0x03},
{0x00,0x03,0x02,0x01,0x03,0x01,0x01,0x01},
{0x00,0x01,0x01,0x00,0x01,0x00,0x00,0x00},

//呀
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00},
{0x00,0x00,0x00,0xC0,0x40,0xC0,0x00,0x00},
{0x00,0x00,0x00,0xE0,0xA0,0xE0,0x00,0x00},
{0x80,0x00,0x80,0xB8,0x28,0x38,0x80,0x40},
{0xC0,0x00,0x40,0xDC,0x14,0x1C,0x40,0x20},
{0xE0,0x00,0x20,0xEE,0x8A,0x4E,0x20,0x90},
{0xF0,0x80,0x90,0xF7,0xC5,0xA7,0x90,0xC8},
{0x78,0x20,0x28,0xFB,0x32,0x2B,0x24,0x32},
{0x7C,0x10,0x14,0x7D,0x19,0x15,0x12,0x19},
{0x7F,0x08,0x09,0x7F,0x0C,0x0A,0x09,0x0C},
{0x3F,0x04,0x04,0x3F,0x06,0x05,0x04,0x06},
{0x1F,0x02,0x02,0x1F,0x03,0x02,0x02,0x03},
{0x0F,0x01,0x01,0x0F,0x01,0x01,0x01,0x01},
{0x07,0x00,0x00,0x07,0x00,0x00,0x00,0x00},
{0x03,0x00,0x00,0x03,0x00,0x00,0x00,0x00},

//小
{0x00,0x00,0x00,0x80,0x40,0x20,0x00,0x00},
{0x00,0x80,0x00,0x40,0x20,0x10,0x00,0x00},
{0x00,0xC0,0x80,0xA0,0x90,0x88,0x80,0xC0},
{0x00,0x60,0x40,0xD0,0x48,0x44,0x40,0x60},
{0x00,0x30,0x20,0x68,0xA4,0x22,0x20,0x30},
{0x00,0x18,0x10,0x34,0x52,0x91,0x10,0x18},
{0x00,0x0C,0x08,0x1A,0x29,0x48,0x08,0x0C},
{0x00,0x06,0x04,0x0D,0x14,0x24,0x04,0x06},
{0x00,0x03,0x02,0x06,0x0A,0x12,0x02,0x03},
{0x00,0x01,0x01,0x03,0x05,0x09,0x01,0x01},
{0x00,0x00,0x00,0x01,0x02,0x04,0x00,0x00},

下载链接

百度网盘	链接：https://pan.baidu.com/s/1ouz_8jT19gxE0E5vkbHY-w?pwd=iop8 提取码：iop8

💡商业转载请联系作者获得授权，非商业转载请注明出处。
协议(License)：署名-非商业性使用-相同方式共享 4.0 国际 (CC BY-NC-SA 4.0)。
使用这些免费资源的时候应遵守版权意识，切勿非法利用，售卖，尊重原创内容知识产权。未经允许严禁转载。
